Description
Inligting:
· Voldoende trekker: 70kW
· Aandrywing: PTO
· Massabak: 4–5 ton
· Awegaar uitgooihoogte: 4m
· Bande: 305/55/R22.5
· Screenings in 50kg sakke
Kapasiteit:
· Mielies: 30–40 t/h
· Sojas: 20–30 t/h
· Sonneblom: 10–15 t/h
Siwwe:
· Mielies: 4.75mm + 6.35mm; Agter 25mm
· Sojas: 4mm + 4mm; Agter 8mm
· Koring: 2× 1.8×12.7mm; Agter 25mm
· Sonneblom: 3.15mm + 3.15mm; Agter 25mm
Opsioneel:
· Elektriese omskakeling
Specifications:
· Tractor requirement: 70kW
· Drive: PTO
· Hopper capacity: 4–5 ton
· Auger discharge height: 4m
· Tyres: 305/55/R22.5
· Screenings bagged in 50kg bags
Capacity:
· Maize: 30–40 t/h
· Soya: 20–30 t/h
· Sunflower: 10–15 t/h
Sieves:
· Maize: 4.75mm + 6.35mm; Rear 25mm
· Soya: 4mm + 4mm; Rear 8mm
· Wheat: 2× 1.8×12.7mm; Rear 25mm
· Sunflower: 3.15mm + 3.15mm; Rear 25mm
Optional:
· Electric drive conversion
===============================
Rolsif Reeks — Voordele / Benefits
· Verwyder nie-gewenste elemente en kleiner graanpitte in die oes om te verhoed dat jou graan swakker gekwalifiseer word by die silos.
· Kleiner pitte wat uitgesif word, kan as veevoer gebruik word — andersins gaan dit verlore by die silos en betaal die silos ook minder vir die oes.
· Die oes wat na die silos gestuur word ná dit deur die Rolsif is, kan moontlik 1 of 2 grade beter geklassifiseer word — en dus ‘n beter prys per ton tot gevolg hê.
· Silokoste om graan te sif en onsuiwerhede te verwyder word vermy.
· Die persentasie gewig wat van die oes afgetrek word agv ongewenste elemente en kleiner pitte, word uitgeskakel.
· Die oes word hoër gegradeer — en dus ‘n beter prys per ton.
· Sifsels wat gewoonlik by die silo gesif word en teruggekoop moet word, bly in jou besit en kan as veevoer gebruik word.
· Tyd word bespaar: die voertuig hoef nie in die tou te wag vir gradering by die silo nie — en kom vinniger terug vir die volgende vrag.
· Gifkorrels en gruis/klein pitte word apart uitgesit.
· Gifkorrels, splits, klein pitte en groen peule word apart uitgesit.
· Mielies · Sonneblom · Sojabone · Koring
· Dubbeldrom — meer geskik vir sojas. Sifsels word gesamentlik via ‘n bakkieshyser opgevoer en in ton-sakke of ‘n sleepwa opgevang.

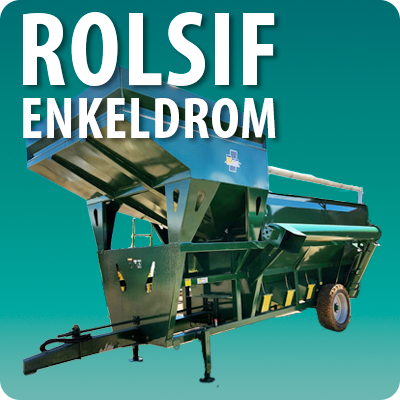

· Enkeldrom — geskik vir mielies, sonneblom en sojabone. Sifsels word in 50kg sakke opgevang.
· Removes unwanted elements and small grain kernels from the harvest, preventing your grain from being graded lower at the silo.
· Smaller kernels sieved out can be used as livestock feed — otherwise they are lost at the silo and the silo pays less for the harvest.
· Grain sent to the silo after passing through the Roll Sieve can potentially be classified 1 or 2 grades higher — resulting in a better price per ton.
· Silo costs for sieving grain and removing impurities are avoided.
· The percentage of weight deducted from the harvest due to unwanted elements and small kernels is eliminated.
· The harvest is graded higher — resulting in a better price per ton.
· Screenings that would normally be sieved at the silo and have to be bought back remain yours and can be used as livestock feed.
· Time is saved: the vehicle no longer has to wait in the queue for grading at the silo — returning to the farm faster for the next load.
· Poison kernels and grit/small kernels are separated out.
· Poison kernels, splits, small kernels and green pods are separated out.
· Maize · Sunflower · Soya beans · Wheat
· Double drum — better suited for soya. Screenings are collectively conveyed via bucket elevator and collected in ton bags or a trailer.
· Single drum — suited for maize, sunflower and soya beans. Screenings are collected in 50kg bags.
